3-BAND OTT DYNAMICS · 4U Rack Extension · $25.00 USD (Black Friday / Launch • Reg. $49) · v1.0.4
Hyperbar Emblem

Hyperbar

3-Band Upward & Downward Dynamics Engine

Hyperbar Front Panel HD RenderHyperbar Front Panel with Band Dynamics Drawer Open HD RenderHyperbar Front Panel with Engine & Spatial Drawer Open HD RenderHyperbar Folded Front Panel HD Render
Hyperbar Rear Panel I/O HD RenderHyperbar Folded Rear Panel HD Render

Squeeze Your Sound: High-Pressure OTT Dynamics for Reason

I built Hyperbar to bring 3-band upward and downward dynamics natively into the Reason Rack, covering everything from huge EDM pump and glassy top-end shimmer to clean multiband control on a master bus.

It’s equally comfortable wearing a suit or a spike collar. Crank the drive, push compression ratios past ∞:1 into negative over-compression, and slam a parallel drum bus. Or pop open the 3-state calibration drawer to shape per-band ballistics and engage transparent mastering modes: phase-coherent crossover summing (Studio), low-end smoothing (Clean), a 3-way upward gate (Floor) that won’t pull up silence and room hiss, and mid/side spatial expansion.

A standard downward compressor only pushes loud peaks down. Hyperbar works in both directions across three decoupled frequency bands (SUB, BODY, AIR), pulling quiet details and tail decay upward by up to +36 dB while clamping loud transients downward by up to -24 dB (-48 dB at 200% overpressure). Every depth, speed, and gain dial uses a smooth S-curve taper with extra resolution around the 10-to-2 o’clock sweet spot, so you can dial in subtle mix-bus moves without the jumpiness of classic OTT plugins while still reaching 0% to 200% overpressure and ±18 dB at the extremes.


In the Mix: Five Everyday Production Workflows

1. Vocal Glassy Air & Consonant Lift

Insert Hyperbar on a lead vocal, load Quick - Vocal Glassy Air, and dial the parallel Blend control to around 35% to 50%. The high-band upward compressor lifts breath details, consonant clarity, and top-end air without harsh sibilance, while the mid-band upward compressor keeps the vocal body anchored firmly forward in the mix.

2. Sub-Bass & 808 Decay Sculpting

Getting 808s and sub-bass right means balancing initial transient punch with sustained low-end weight. Load Quick - Bass & 808 Sub Lock and flip the calibration drawer’s Sub Det switch:

  • Clean: Keeps deep sub notes smooth, pure, and weight-locked on club and studio subwoofers without low-end warble or flutter.
  • Gritty: Tracks fast enough to inject raw harmonic growl into the sub octave so basslines cut through on phones and small speakers.

Click Sub Mono (SUB STEREO / SUB MONO) to sum all sub-crossover energy into a solid center image before dynamics processing.

3. Drum Bus Punch & Parallel Room Crush

For explosive parallel drums, send your kit to a bus loaded with Quick - Drum Bus Punch & Room. Turn Speed toward Fast (or tilt the master Contour knob toward Peaky): downward compression lets initial drum transients crack through while upward compression pulls up room bleed, hi-hat shimmer, and snare shell resonance. Blend the return under your dry kit for immediate thickness and weight.

4. Ambient Reverb Blooming & Tail Extraction

Take a dry synth pluck or acoustic guitar loop. Load Quick - Ambient Reverb Cloud and turn Speed toward Slow. As notes decay, upward compression pulls the dying reverb tail forward, creating an ambient wash between notes without smearing the initial attacks.

5. Mix Bus Density & Mastering Lift

Across a full mix or master bus, Hyperbar acts as a low-level detail maximizer. Load Quick - Mix Bus Density Lift, back Squeeze down to around 15% to 25%, and make sure X-Over is set to Studio (flat phase-coherent summing). Low-level background elements, vocal reverbs, and subtle stereo cues come forward without altering your overall tonal balance.


Front Panel & 3-State Calibration Drawer

Hyperbar keeps everyday macro shaping on the upper 4U faceplate and tucks deep per-band and engine calibration into a song-persistent lower drawer:

Full 4U Faceplate (Upper Bays)

  • Header Bar: Hardware bypass switch (BYP / ON / OFF) and front-panel patch browser.
  • Pre / Tone & Timing Bay (Left):
    • Speed (SLOW • OTT • FAST): Global attack and release speed control, centered on classic OTT timing at 12 o’clock and sweeping from 0.20x (SLOW) to 5.0x (FAST).
    • Heat (-18 • +18 dB): Pre-crossover input drive with auto-compensated output gain, letting you push harder into the detector thresholds without blowing up downstream volume.
  • 3-Band Dynamics Matrix (Center): Three decoupled frequency bands (SUB, BODY, AIR) paired with vertical threshold bias faders (WEIGHT, BITE, SIZZLE, Âą18 dB) centered around pink-noise-calibrated default thresholds (-27.75 dB Sub, -27.00 dB Body, -25.70 dB Air). Each band features a 12-column sight-glass meter array (IN, DYN, OUT across +6 to -60 dB scales) showing real-time input levels, bidirectional downward crush (amber/orange from the top) and upward lift (cyan from the bottom), and post-band output levels.
  • Master & Output Stage (Right):
    • Squeeze (0% • 100% • 200%): Global upward and downward compression depth. From 0% to 100%, ratios scale up to 4:1 upward and 8:1 downward OTT levels; pushing from 100% to 200% enters overpressure mode (driving downward compression past ∞:1 into negative ratios and doubling upward lift range).
    • Contour (SMOOTH • OTT • PEAKY, -100% to +100%): Global ballistics tilt that offsets all three band contours together, shifting the compressor’s character from dense, smooth sustain (Smooth) through classic OTT timing (OTT) to fast-recovering transient snap (Peaky).
    • Blend (DRY • WET, 0% to 100%): Parallel dry/wet mix control.
    • Thrust (-18 • +18 dB): Post-dynamics makeup gain feeding the output stage.
    • Output Peak dBFS Meter: True post-limiter stereo peak meter (+6 to -48 dB). 0.0 dBFS sits right at the top amber LED on the golden 0 dB line, while anything above 0.0 dBFS lights the 4 red overpressure LEDs. With Limiter set to Soft or Hard, the meter clamps cleanly at 0 dB; flip Limiter to Off to see how many red LEDs light up and gauge how hard you’re driving the clipper.

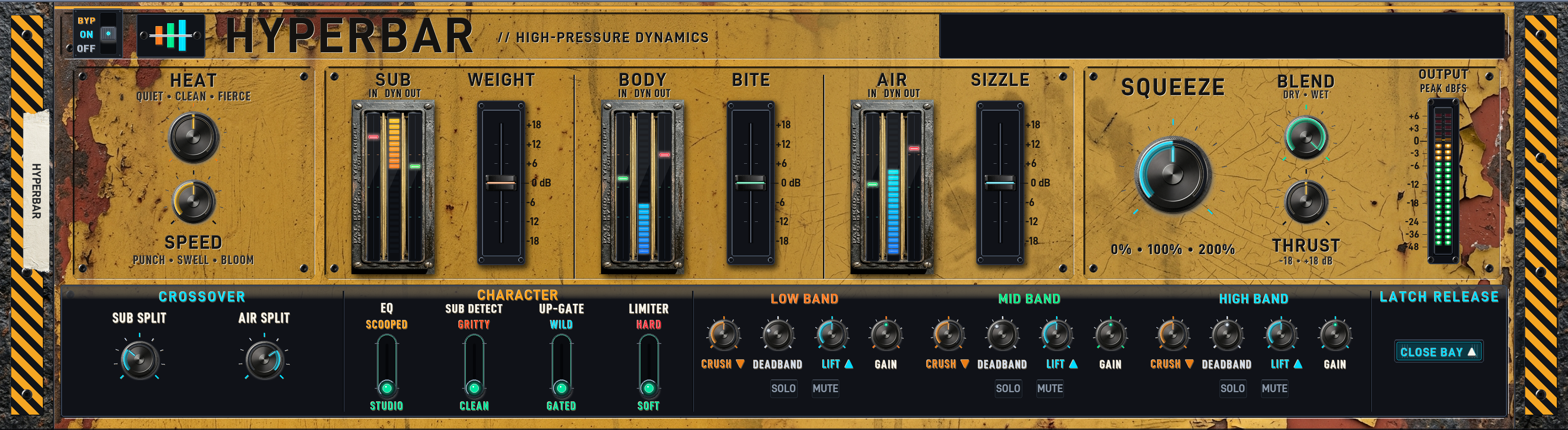

The 3-State Calibration Drawer: Band Dynamics & Engine/Spatial

Use the bottom selector tabs (DRAWER CLOSED, BAND DYNAMICS, ENGINE & SPATIAL, saved with your song so switching presets never resets your open view) to switch the lower 4U bay between two engineering views:

  • Drawer Tab 1 (BAND DYNAMICS): Three side-by-side band calibration bays (SUB DYNAMICS, BODY DYNAMICS, and AIR DYNAMICS), each with SOLO and MUTE buttons and five rotary trims:

    • Crush (0% to 200%): Per-band downward compression depth.
    • Deadband (0 to 48 dB): Sets the width of the linear “sweet spot” window between the downward and upward thresholds where audio passes untouched (defaulting to classic 7.0 dB Sub, 11.6 dB Body, and 5.3 dB Air windows).
    • Lift (0% to 200%): Per-band upward compression depth.
    • Contour (SMOOTH/PEAKY): Continuous per-band attack/release ratio skew (0.33x to 3.0x around the OTT baseline, shifting attack-to-release ratio by up to 9x from center). Turn toward Smooth for faster attack and gentler release (sustained density), or toward Peaky for up to 3x slower attack and faster release so drum and pluck transients punch through before compression clamps down.
    • Gain (-18 to +18 dB): Per-band post-compander output trim.
  • Drawer Tab 2 (ENGINE & SPATIAL): Four sub-bays for crossover tuning, character switching, stereo field shaping, and delta monitoring:

    • Crossover & Sub Anchor: Sub Split (BYP • 60 to 1200 Hz, default 88.3 Hz, with full counter-clockwise minimum Bypass below 60.2 Hz engaging a true 0 Hz 2-band sub-bypass down to DC), Air Split (800 to 12000 Hz, clamped >= 1.1x above Sub Split, default 2.5 kHz) using 4th-order (24 dB/octave) Linkwitz-Riley filters, and the SUB STEREO / SUB MONO toggle button to sum low-band energy to mono before dynamics processing (Sub Mono On in the default patch; Sub Stereo on Reset Device).
    • Character & Engine Architecture: Five vertical switches that tame or unleash classic OTT behaviors:
      • X-Over (SCOOP | STUDIO): Studio provides flat, phase-coherent summing across split points; Scoop restores the classic phase-notch midrange scoop.
      • Sub Det (GRITTY | CLEAN): Clean uses 12 ms anti-ripple smoothing to prevent low-frequency intermodulation distortion on deep bass and 808s; Gritty uses instantaneous peak tracking for odd-order harmonic bite.
      • Floor (WILD | SMOOTH | TIGHT): 3-way upward gate switch selecting between Tight (-55 to -67 dBFS soft knee) for speech and stem gating, Smooth (-62 to -80 dBFS progressive knee, default) for clean mix and master bus leveling, and Wild (-75 to -95 dBFS knee) for deep ambient room and tail lift.
      • Limiter (HARD | SOFT | OFF): Master output clipper offering Soft (asymptotic rational knee saturation starting at -3.52 dBFS, 2x oversampled below 88.2 kHz), Hard (0.0 dBFS brickwall ceiling clamp), or Off (unclamped).
      • Domain (L/R | M/S): Switches the 3-band dynamics engine between Left/Right stereo and Mid/Side matrix operation.
    • Spatial Suite: Expanse (0% to 100% stereo detector decoupling for wider dynamic imaging; 50% in the default patch, 0% on Reset Device) and Horizon (-12 to +12 dB M/S Side width bias applied directly to Body and Air, active in both M/S and L/R modes with Low-band Side gain clamped <= 0 dB to keep sub-bass centered).
    • Audition & Monitor: Three radio columns for signal inspection:
      • Source (KEY/SC | PROGRAM): Program monitors the processed audio path; Key/SC auditions the crossover-split detector signal (Heat drives the internal key path, while external SC IN enters the sidechain crossover at unity gain, unscaled by Heat), unaffected by Blend or Thrust.
      • Channel (SIDE | MID | NORMAL): Solos the stereo Mid sum (MID) or Side difference (SIDE) across both outputs in M/S domain, or solos the Left (MID) or Right (SIDE) channel across both outputs in L/R domain.
      • Monitor (LIFT+CRSH | CRUSH | LIFT | NORMAL): Delta auditioning to hear only what upward lift, downward crush, or both combined (LIFT+CRSH) are doing to the signal.

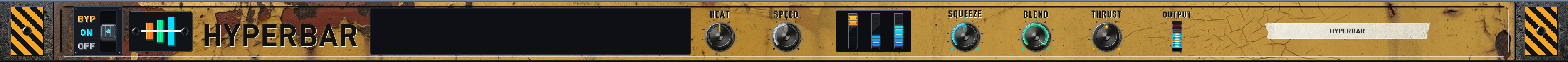

Compact Folded Strip

When rack space is tight, Hyperbar folds into a compact strip with active controls and metering:

  • Direct Macro Dials: Hardware bypass switch (BYP / ON / OFF), collared hero SPEED and HEAT dials on the left, and collared hero SQUEEZE alongside BLEND, CONTOUR, and THRUST on the right.
  • Navigation & Sight-Glass Metering: Front patch browser, 3-band mini dynamics sight-glass (SUB, BODY, AIR), and stereo OUT peak metering.

39 Production-Ready Presets

Hyperbar ships with 39 factory presets (all tagged with native Reason 13+ Browser .rsmeta metadata): 11 root Quick Starters for immediate access, plus 28 specialized patches across 7 category folders:

  1. Root Quick Starters (11 Presets): Instant starting points in the patch root, featuring Quick - Modern HyperOTT Slam (flagship starter), Quick - Record Transfer and Quick - Competent City (calibrated tributes to classic digital OTT implementations), alongside 8 everyday production setups: Quick - Vocal Glassy Air, Quick - Bass & 808 Sub Lock, Quick - Ambient Reverb Cloud, Quick - Snare & Clap Shaper, Quick - Drum Bus Punch & Room, Quick - Dynamic HF Air Exciter, Quick - EDM OTT Master Wall, and Quick - Mix Bus Density Lift.
  2. 01 Factory Essentials (3 Presets): Reference setups including Aggressive Breakbeat Crusher, EDM Big Squeeze, and Gentle Mastering Glue.
  3. 02 Drums & Percussion (4 Presets): 808 Sub Sculptor, Drum Bus Energizer, Hi-Hat Shimmer & Sizzle, and Snare Crack & Room.
  4. 03 Bass & Low End (4 Presets): Acid Squelch Densifier, Reese Bass Squeeze, Sub Thump & Low Anchor, and Zero-Split True Sub Monofier.
  5. 04 Vocals & Top End (5 Presets): De-Breath Vocal Polisher, Dual-Mono Vintage Vocal Slam, Hyperpop Vocal Maximizer, Intimate Whispers & Breaths, and Vocal Air & Presence.
  6. 05 Synths & Keys (4 Presets): Pluck Resynthesizer, Supersaw Wall of Sound, SynthClarity - (by noiseShadow), and Warm Rhodes Sustain.
  7. 06 Mix Bus & Mastering (3 Presets): Broadcast Density Enhancer, M-S Mastering Expanse, and Transparent Multiband Leveler.
  8. 07 Sound Design & FX (5 Presets): Ghostly Reverb Resuscitator, Granular Texture Extractor, Parallel Slam, Stereo Horizon Diffuser, and Wild Noise Sifter.

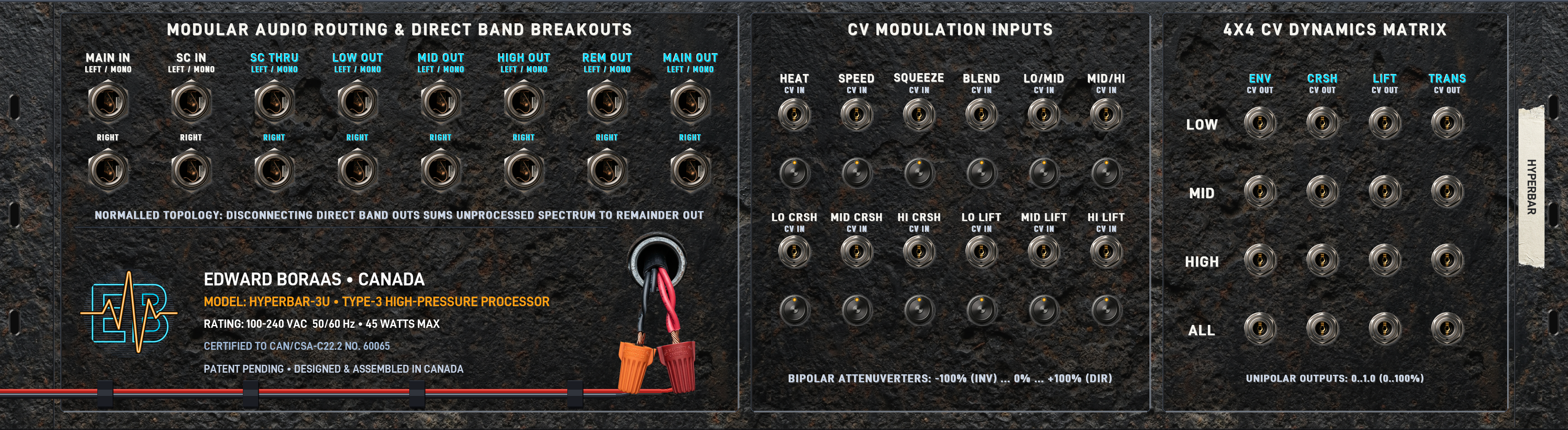

Modular Rack Routing & CV Matrix

Flip Hyperbar around (Tab) to wire it into Reason’s audio and CV patchbay:

  • 16 Modular Audio Jacks: 8 vertical stereo pairs (MAIN IN, SC IN, SC THRU, SUB OUT, BODY OUT, AIR OUT, REM OUT, MAIN OUT) with Right jacks below Left/Mono.
  • Dynamic Residual Bus (REM OUT / Remainder Out): Automatically sums whichever frequency bands aren’t tapped by individual band outputs. For example, patching SUB OUT to a dedicated external sub processor leaves REM OUT carrying Body + Air for downstream processing.
  • Sidechain In & Thru (SC IN / SC THRU): Frequency-dependent external sidechain detection routed through Linkwitz-Riley crossovers matched to your main audio path, with normalled SC THRU output for daisy-chaining multiple processors from one key signal.
  • 14 CV Modulation Inputs: Dedicated bipolar attenuverters (-100% to +100%) for HEAT, SPEED, SQUEEZE, BLEND, SUB XO, AIR XO, individual per-band CRUSH and LIFT depths (SUB, BODY, AIR), EXPANSE, and HORIZON.
  • 24-Jack 6x4 CV Telemetry Matrix: Unipolar CV outputs (0.0-1.0) organized by columns across rows for SUB, BODY, AIR, MID, SIDE, and ALL. The ENV column outputs post-dynamics program amplitude (fast attack / 50 ms smooth exponential release, reflecting upward lift bloom, downward crush, band makeup gain, and master stage, gated to 0.0 when muted or solo-excluded), CRSH tracks downward reduction (36 dB = 1.0), LIFT tracks upward expansion (36 dB = 1.0), and TRIG outputs pre-dynamics transient gate pulses so triggers stay sharp and responsive even under heavy 200% Squeeze. Full Reason Remote and MIDI CC automation is mapped across the faceplate and drawer, including per-band Deadband and Contour (MIDI CCs 73 to 78).

Under the Hood: Pure C++17 DSP Core

For engineers who want the exact numbers behind the faceplate:

  • Phase-Coherent Filtering: 4th-order (24 dB/octave) Linkwitz-Riley crossover networks (88.3 Hz and 2.5 kHz defaults, plus true 0 Hz sub-bypass at minimum Bypass below 60.2 Hz) implemented with 64-bit double-precision floating-point cascaded biquads and 2nd-order all-pass phase compensation in Studio mode (0.000 dB flat magnitude sum).
  • Non-Linear Sweet-Spot Knob Laws: Squeeze and per-band Crush/Lift depths use a gentle cubic S-curve (100% ¡ (1.0 + 0.45u + 0.55u3)) for ~2.2x finer resolution in the 10-to-2 o’clock sweet spot, placing the 114.3% ∞:1 downward brickwall point near 2 o’clock. Speed uses a detent-free log-cubic S-curve (50.35u + 0.65u3) across its 25:1 range (0.20x-5.0x), and Heat, Thrust, per-band Gain, and threshold bias faders use a 1.5-power S-curve (18.0 ¡ sgn(u) ¡ |u|1.5) across -18 to +18 dB for ~1.5x finer resolution around 0 dB.
  • Calibrated Ballistics, Pink-Noise Thresholds & Asymptotic Soft Limiter: Default band threshold centers (-27.75 dB Sub, -27.00 dB Body, -25.70 dB Air) are calibrated against pink-noise spectral distribution for balanced 3-band triggering. Nominal (Speed = 3.67, Contour = 0% center) attack and release ballistics use calibrated 1-pole time constants (Sub 10.47 ms Atk / 80.44 ms Rel; Body 4.91 ms Atk / 80.44 ms Rel; Air 2.96 ms Atk / 37.65 ms Rel) that preserve geometric-mean recovery speed with a 6% nudge toward dense sustain. Continuous 0.33x-3.0x per-band ratio skew morphs contour from Smooth to Peaky, with the master CONTOUR dial applying global Âą100% offsets across all three bands simultaneously. At sample rates below 88.2 kHz, the Soft output limiter runs a zero-latency causal 3-point quadratic Lagrange midpoint interpolator with [0.25, 0.50, 0.25] decimation weights and a C1 delta crossfade into an asymptotic rational saturation knee above -3.52 dBFS (2/3 linear amplitude), preserving 0 ULP bit-exact linear passthrough below threshold.
  • True Zero Latency & Sample Rate Independence: 0 samples of host PDC latency for phase-accurate parallel blending and live tracking, with continuous ballistic and filter coefficients calculated across all supported sample rates from 22.05 kHz to 192.0 kHz (22.05, 44.1, 48, 88.2, 96, and 192 kHz).

Studio Documentation & Guides

  • Quick Start & Workflow Guide: 60-second setup, the 6 main controls at a glance, a 4-preset listening tour, and step-by-step recipes for drum bus punch, sidechain bass ducking, and vocal presence.
  • Operation Manual & Studio Reference Guide: Full panel reference (Front Panel, Drawer Tabs 1 & 2, Compact Folded Strip, Rear Panel), 8 studio production workflows, all 39 factory presets, DSP architecture & transfer curves, and complete Remote automation maps.
